Reverse Engineering a Star Battle ASIC

My solution to the Jane Street challenge.

The code I wrote to solve the puzzle can be found in the asic-puzzle-2026 repository.

When I encountered the challenge, my first step was to extract the netlist from the GDS. Naturally, this is because the GDS is the output of place-and-route tools, which take the RTL, produce a netlist, and then lay out this netlist onto the standard cell library.

So I wrote a simple Python script using Claude called gds_extract.py in the tools folder of my repository. It uses the gdstk and Shapely libraries to extract the netlist from the puzzle.gds input file. The gdstk library obtains the GDS hierarchy, polygons, cell references, transformations, and labels. Subsequently, Shapely merges touching conductor geometry independently on each routing layer. That way, different polygons for the same wire are semantically united. Finally, a disjoint-set/union-find data structure connects those components through contacts and vias. This is because a single net can traverse numerous polygons and multiple layers.

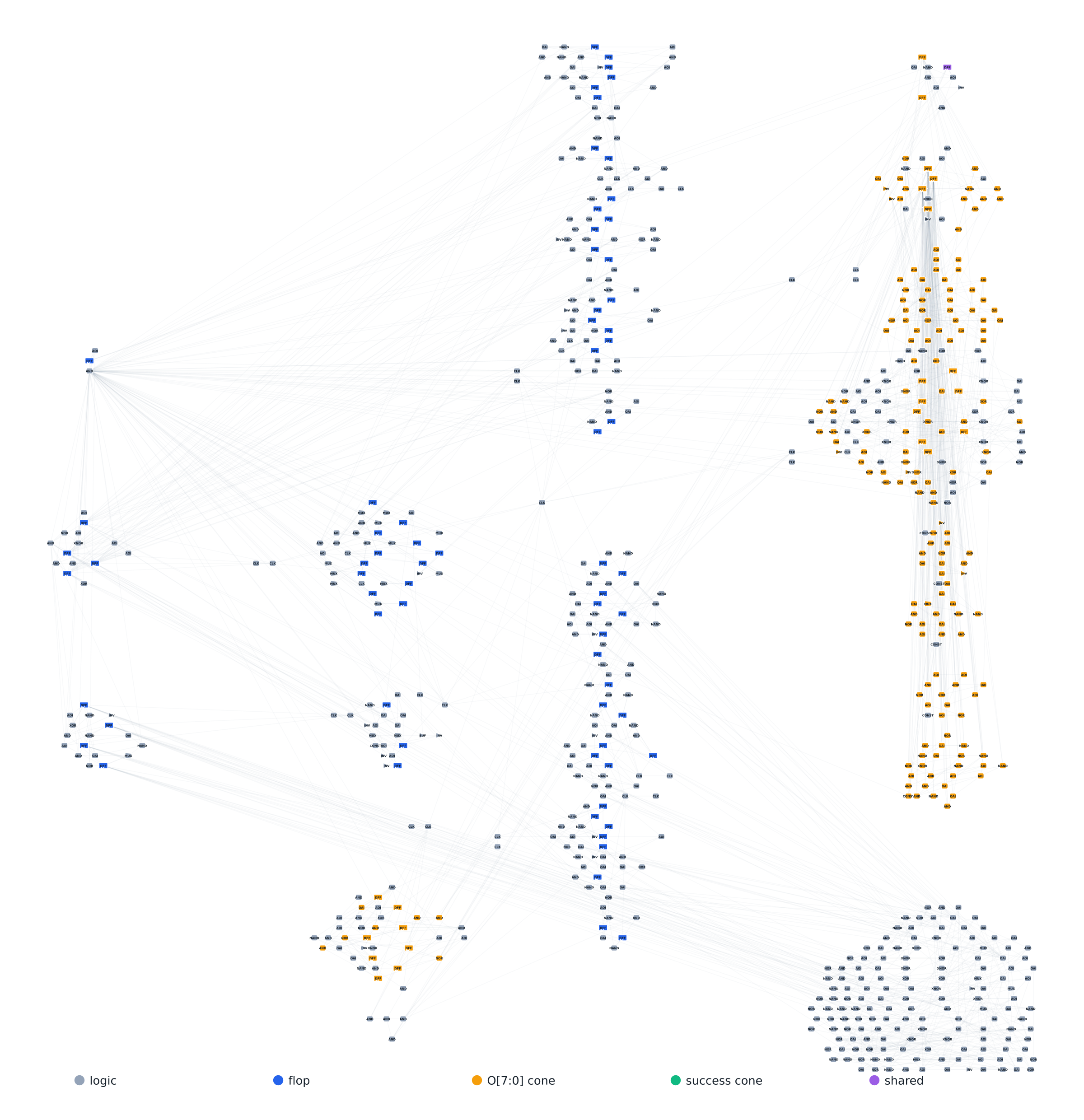

The result of this pipeline is a gate-level netlist. Its purpose is to map each cell instance to a numeric net and indicate the nets connecting them. For example, if “cell_17.Y” and “cell_18.A” were the same logical wire, they would have the same mapped value. Note that wires separated by a gate do not count as the same net.

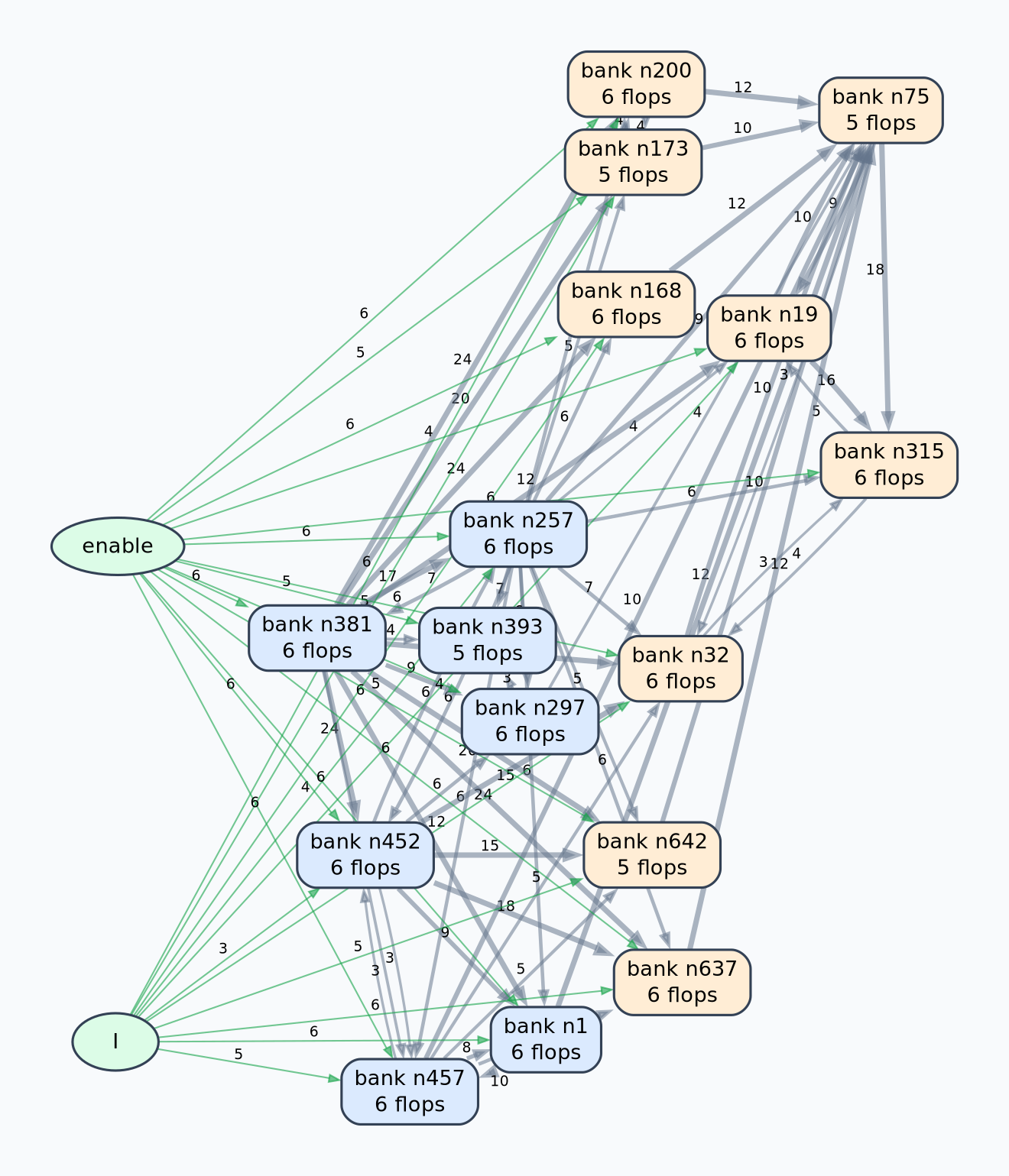

Given this netlist, Claude helped me write simulate_netlist.py to simulate its Boolean behavior. It adapts the netlist from the SKY130 PDK library to common elements in combinational and sequential logic. For example, in the PDK, some cells are compound gates, such as “a2110”; there are also AND-invert-OR compounds. Moreover, there are various types of flip-flops. Ultimately, all of these were topologically evaluated on rising clock edges to simulate the actual input-to-output mapping, leading to the final step of solving the puzzle.

Running the example input gave success = 0, as expected. The output bytes, when mapped to ASCII characters, produced the phrase “TRY AGAIN.”

To figure out what input would generate success = 1, I used the Z3 SAT solver and wrote the solving code in solve_challenge.py. It turns each of the 121 input bits into Boolean variables whose values must be solved to obtain a successful output. The symbolic input bits are then propagated through the netlist, one clock cycle at a time. This builds Boolean expressions that the solver must satisfy. At the end of the netlist, the success constraint is added to Z3. The result is the input sequence that produces success. Once obtained, the program adds a clause eliminating the previous input sequence, but that resulted in UNSAT, showing that the solution is unique.

That solution is the sequence:

000000010101000010000000000001010101000000000000101000000100000100000010000010
1000010000000100000010000010010001010000000

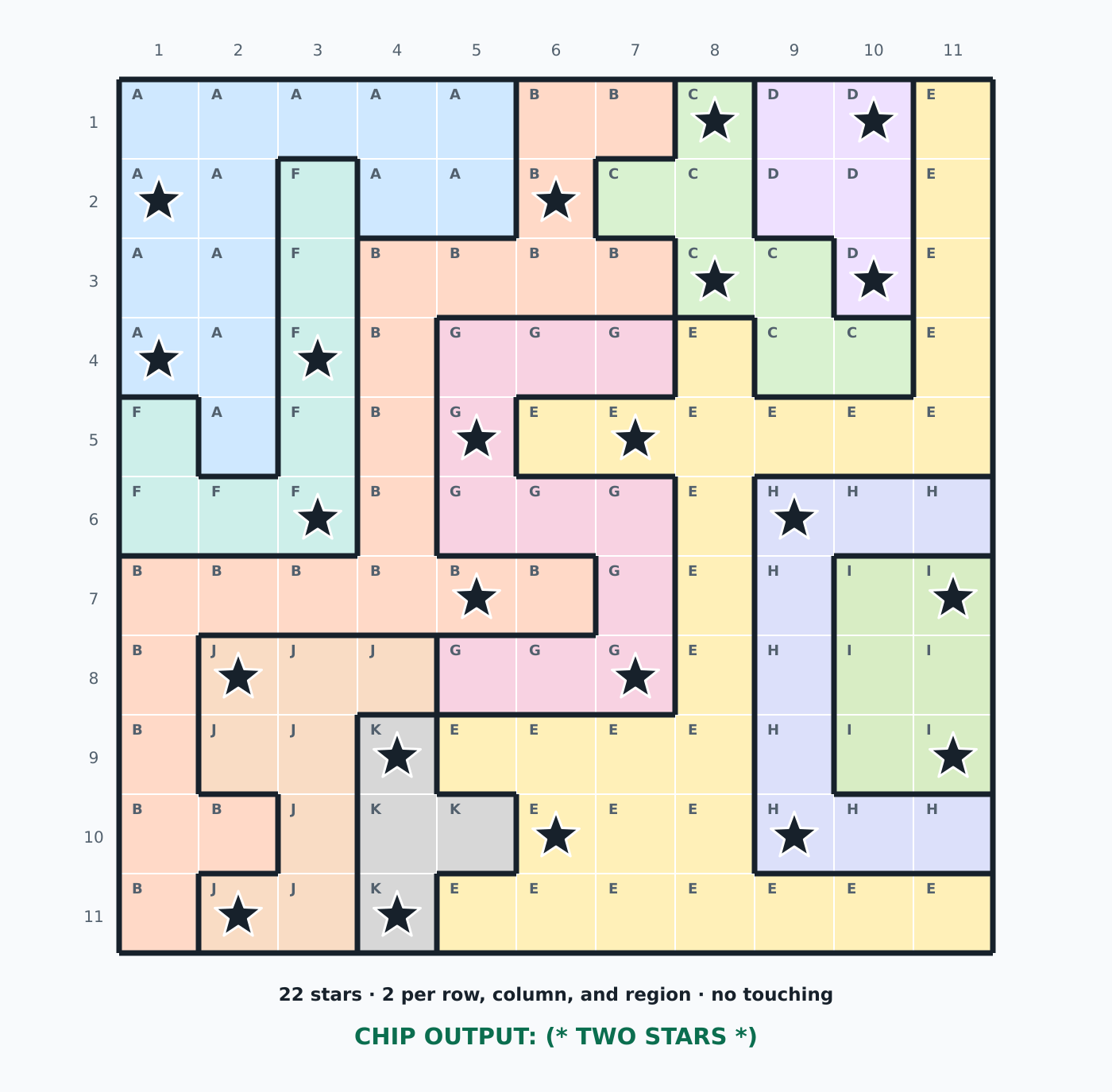

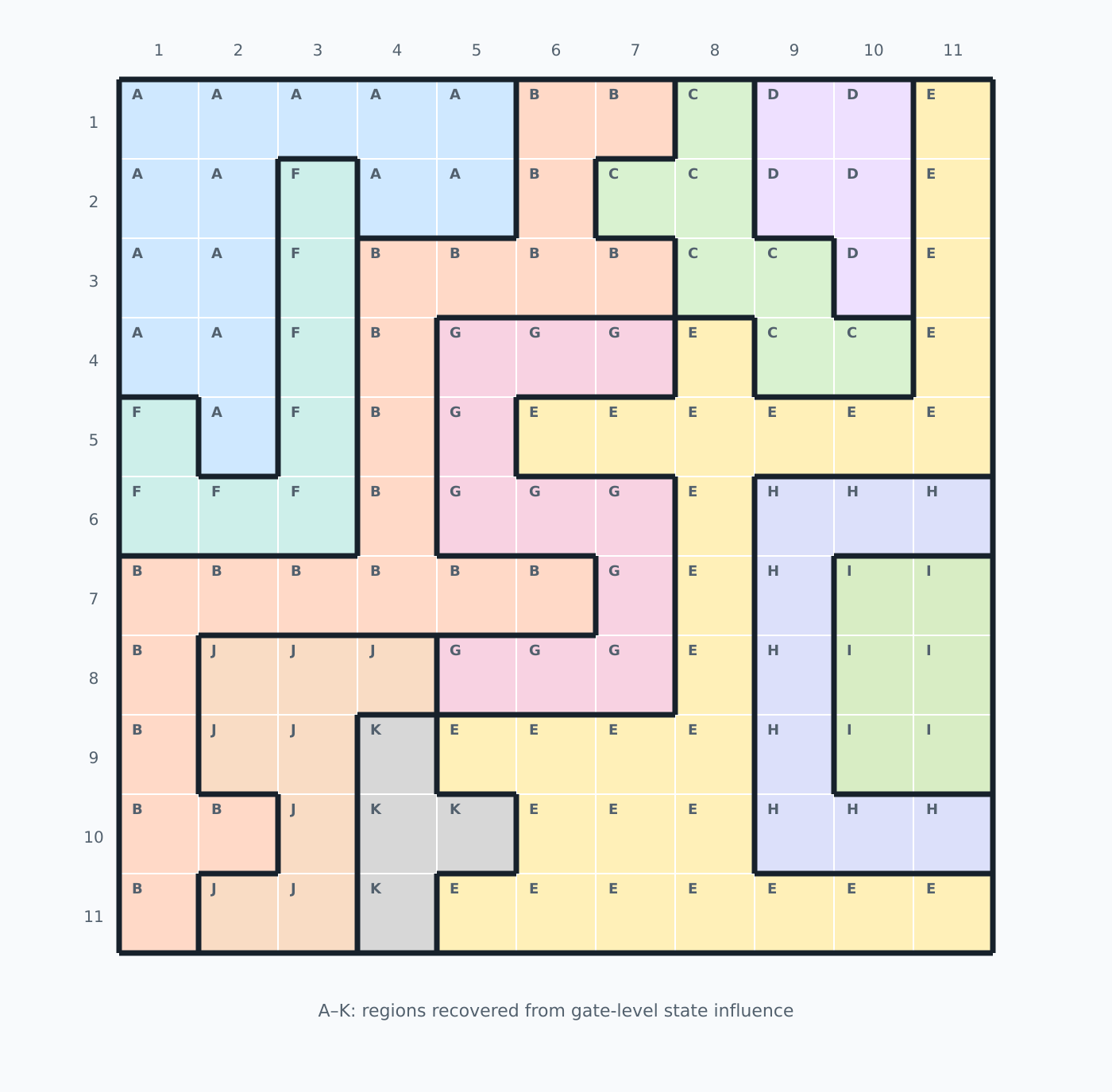

The final answer from the output under that successful input stream was (* TWO STARS *), which is the syntax of a comment in OCaml, Jane Street’s most commonly used language. The output also confirms that the ASIC is a Star Battle game, and the input is a row-major representation of the grid.

Extracting the Easter Eggs

The first two easter eggs were found by feeding all zeros and all ones into the input sequence. These produced the output ASCII strings “THE NIGHT SKY AWAITS” and “BIG BANG,” respectively.

Another easter egg was found in the example inputs file, which contained two separate 121-bit input sequences. The chip was fed one, disabled, and then fed the other; both produced “TRY AGAIN.” Splitting each 121-bit stream into eleven rows of eleven bits, then interpreting columns 0–6 of each row as a 7-bit, least-significant-bit-first ASCII character, produced:

attempt 1: "The night s"
attempt 2: "ky awaits  "

Together:
"The night sky awaits  "

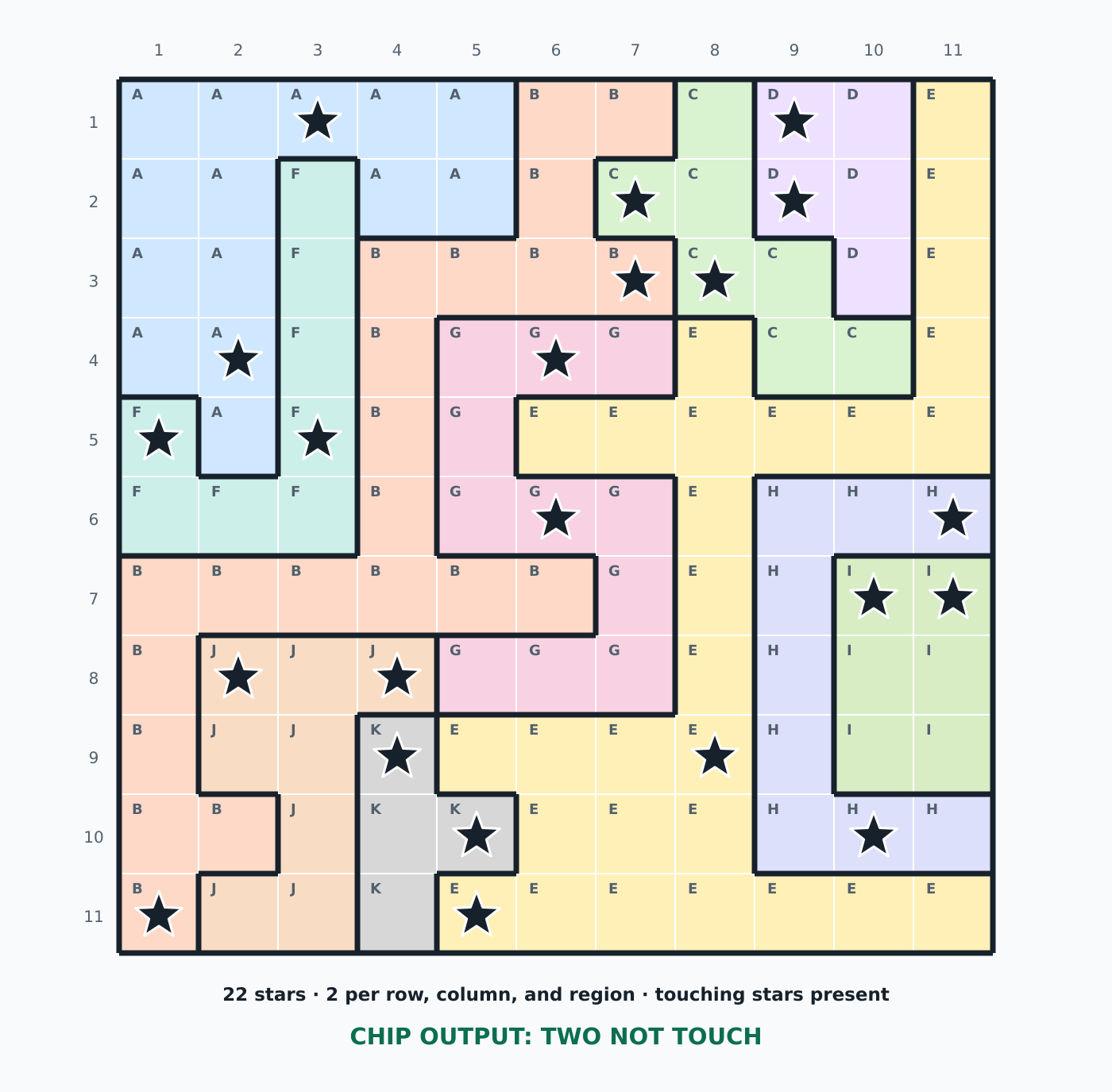

The final easter egg was found using enumerate_messages.py. It also uses the Z3 solver, but instead of simply solving for a successful input sequence, it enumerates all possible output sequences by invalidating previous output sequences. This strategy revealed a new output that had not been caught previously: the case where each row, column, and diagonal had two stars, but the stars touched, violating one of the rules. This led to the output string “TWO NOT TOUCH.”

Conclusion

I learned a lot about GDS internals, netlists, and SAT solvers from this challenge, and I look forward to the ASIC design and tapeout challenge coming up in the future!

William Zhang
